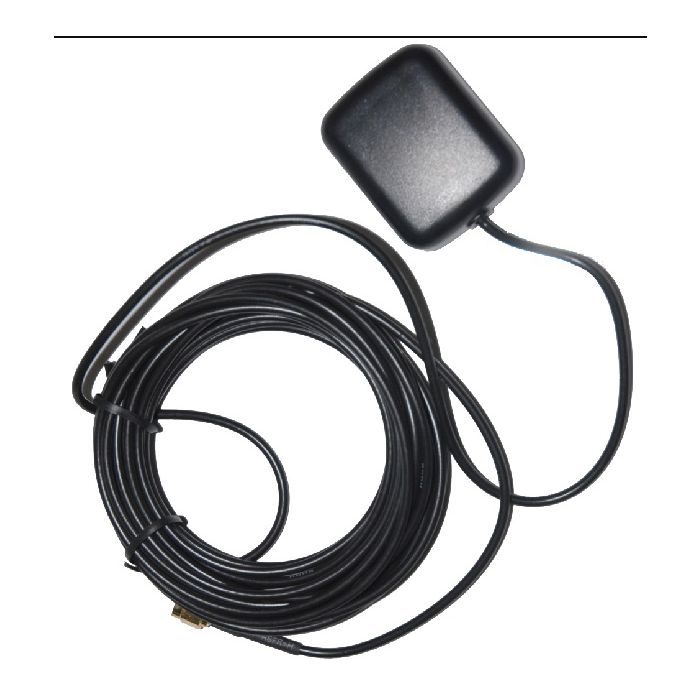

Hytera GPS04 GPS Antenna - 1575MHz, 10ft, SMA connector - MD Series, HM Series

$18.95
SKU # :
GPS04
Man Part # :
GPS04

Hytera GPS04 GPS Antenna - 1575MHz, 10ft, SMA connector - MD Series, HM Series

Usually Ships in 2-3 Days
You also maybe interested in
More Information
Manufacturer Hytera
When does item ship? Usually Ships in 2-3 Days
SKU GPS04
Man Model # GPS04
MPN GPS04
AKA / Keywords GPS-04, GPS04,
Works with: Hytera, MD652, MD782
Warranty 1 Year
Badges Html
Type Accessory GPS Antenna
In the Box

(1) Hytera GPS04 Antenna

  • Product Model : DAM 1575A2 3.3V
  • Dielectric Antenna
  • Center Frequency 1575.42MHz±3 MHz
  • V.S.W.R 1.5:1
  • Band Width ±5 MHz
  • Impedence 50 ohm
  • Peak Gain > 3dBic Based on 7×7cm ground plane
  • Gain Coverage > -4dBic at –90°< 0 < 90° (over 75% Volume)
  • Polarization RHCP
  • LNA/Filter
  • LNA Gain (Without cable) 28dB Typical
  • Noise Figure 1.5dB
  • Filter Out Band Attenuation (f0=1575.42 MHZ)
  • 7dB Min f0+/-20MHZ ;
  • 20dB Min f0+/-50MHZ;
  • 30dB Min f0+/-100MHZ
  • V.S.W.R < 2.0
  • DC Voltage 3V , 5V, 3V to 5V
  • DC current 5mA , 10mA Max
  • Mechanical
  • Weight < 110gram
  • Size 48×39×16mm
  • Cable RG174 3 meters
  • Mounting Magnetic base
  • Housing Black
  • Environmental
  • Temp -40c~+85c
  • Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
  • Humidity Humidity95%~100%RH
  • Weatherproof 100% Waterproof Working
