SKU # :
ACUPS24700
Man Part # :
AC-UPS-24-700

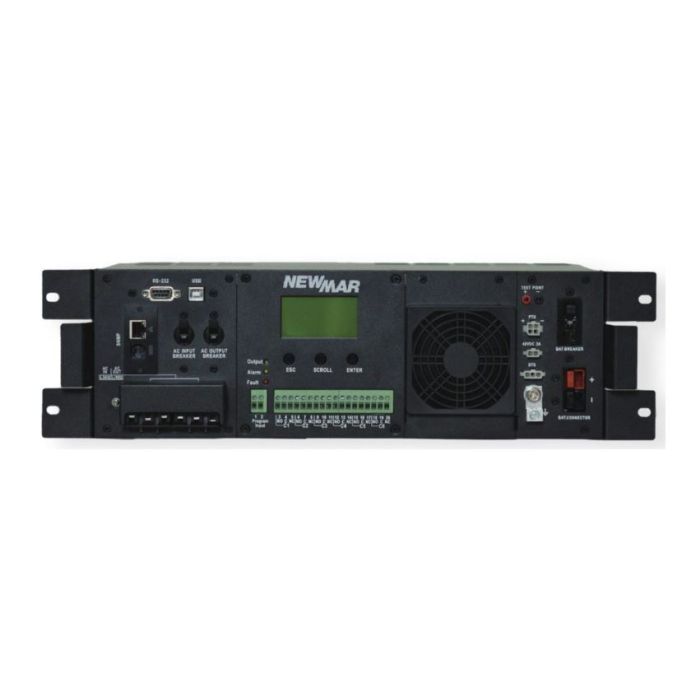

Newmar AC-UPS-24-700 Rugged UPS - 24V, 700A, 700W
The Rugged AC UPS is a drop-in replacement and an enhanced upgraded solution to industry standard UPS products, offering The Perfect Fit in any application.
The Rugged AC UPS series is part of Newmar’s line of reliable uninterruptible power supplies designed to keep critical electrical infrastructure safe and running during utility grid failures and brownouts. Made for Intelligent Transportation Systems (ITS) /traffic, telecommunications, & public safety industries, the UPS series is a reliable solution for all indoor or outdoor applications where loss of power is unacceptable or carries a high cost.
Features
Wide range of Automatic Voltage Regulation (AVR)
Temperature compensated charging
Fast transfer time < 5ms typical
SNMP network card, RS-232 and USB ports included
LCD screen for quick access to system diagnostics
Front panel connections for easy install
Forced air cooled with fan filter (field replaceable)
Forced air cooled with fan filter (field replaceable)
Alarm contacts (six sets)
19” rack or cabinet mounting
AC Wiring: hard wired AC input/output
Specifications
Input Voltage Range: 88 - 152V AC, User Programmable. Default set @ 100 - 130V AC Transfer time (typical): UPS Mode: 5ms Normal Mode: 20ms Generator Mode: 25ms Site Fault Detection: Yes Efficiency:Line Mode: 95% AVR Mode: 90% UPS Inverter Model: >90% Output Waveform: Pure sine wave Nominal Output Voltage: 120V AC, +/- 5% Output Frequency: 50/60 Hz +/- 0.1% Nominal DC Voltage: 48V DC (2000V A and 1200V A) 24V DC (700V A) Low DC Voltage Warning: 48V DC: 42 - 55V DC (adjustable) 24V DC: 21 - 27.5V DC (adjustable) No Load Power Consumption: 28 watts at rated nominal DC Voltage THD (Bat. Mode) <3% (full resistive load)
Load Crest Factor: 3:1 @ rated load Overload Protection: 5s @ ≥ 125 - 150% load 60s @ 110 - 125% load Output Short Circuit Protection: Output breaker/electronic current limit/firmware Surge Capacity: 200% (rated power for 5 secs) Back Feed Protection: Yes Charging Current: 2A/4A/6A/8A/10A adjustable Charging Algorithm: 3 step Operating Temperature: -40° to 80° C Storage Temperature: -50° to 80° C Relative Humidity: 5 to 95% non-condensing Audible Noise: < 53dB Cooling: Forced air, field replaceable fan and filtered EMI: Class A FCC/CISPR [EN50091-2: 1995] Surge Protection: IEEE/ANSI C.62.41 & 2KV, L-N Certifications: TUV Rhineland certified to UL Standard 1778: 2014 R10.17, CSA Standard C22.2 No. 107.3-14+GI1 & FCC Part 15A (EMC) specifications
