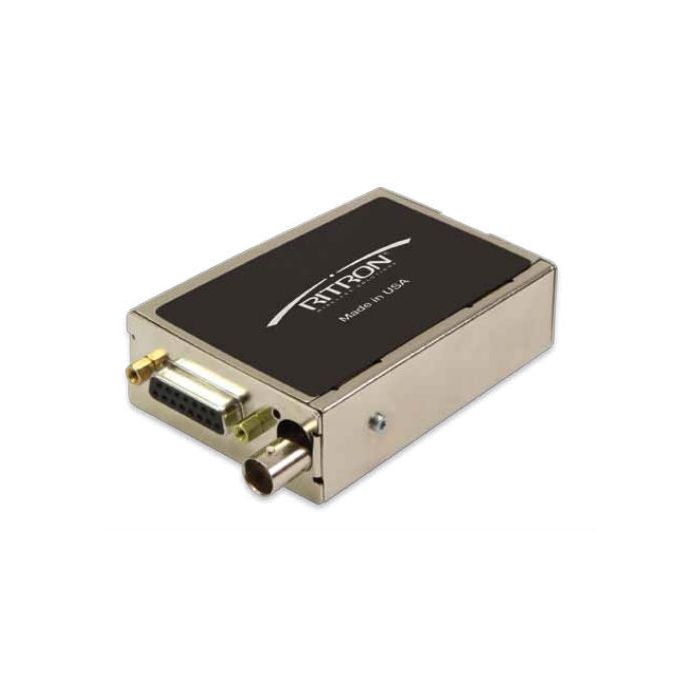

Ritron DTX-460-OBN6D DTX PLUS 60 Series Wireless Transceiver Data Module (Enclosed Version) - 1-6W, UHF(450-470MHz), Narrow Band, 7.5VDC

$435.00
SKU # :
DTX460OBN6D
Man Part # :
DTX-460-OBN6D
The Ritron DTX+ Series is ideal for any system design where high performance RF specifications, fast TX/RX attack times, and compact size are a requirement. High specifications permit integration into systems demanding the utmost performance in congested frequency environments. This compact design makes the DTX+ Series perfect as a retrofit to RNet and JSLM installations. Direct modulation with low distortion and low group delay result in a low bit-eror-rate (BER) for enhanced system integrity and reliability. The Swift Lock(SM) synthesizer-loading algorithm reduces unit turn-on-time to less than 10ms for high-speed data throughput rates, and Controlled Envelope(SM) keying reduces adjacent channel “keyclicks”, resulting in spectrum-friendly operation. Capable of 6.25kHz and 12.5 kHz channel spacing operation, the DTX+ Series can be installed in systems where re-farming compliant narrow band frequencies have been assigned.

Usually Ships in 4 Days
More Information
When does item ship? Usually Ships in 4 Days
SKU DTX460OBN6D
Man Model # DTX-460-OBN6D
AKA / Keywords DTX460OBN6D
Warranty 1 Year
Frequency Band UHF
MHz Range 450-470MHz
Watts 6 Watts
Voltage Input 7.5 Volts
Antenna Connector BNC Female
In the Box One (1) Ritron DTX-460-OBN6D DTX PLUS Wireless Transceiver Data Module (Enclosed Version)
Ritron DTX PLUS FEATURES - Wide Band (25 kHz)* - Narrow Band (12.5 kHz) -Very Narrow Band (6.25 kHz) Models - Broadband TX/RX Design: 38 MHz@VHF, 28 MHz@220 MHz, 20MHz@UHF - 6 Watt (VHF & 220MHz) and 3/6/10 (UHF) Models - DSP audio processing for cleaner data transmission - Frequency Ranges: ** 136 -174 MHz 400-430 MHz 217-245 MHz 450-470 MHz 380-400 MHz - Compact Size: 3.6”l x 2.3”w x 1.0”h - Frequency Stability Standard @ 1.0 ppm - Ultra Fast TX/RX Attack Times - Controlled Envelopesm TX Keying - Dual Transmit and Receive Audio Paths - Meets FCC and IC (Canada) Standards ** - Programmable Output Power - SMD Component Design - Custom Frequency Ranges Available - Designed and Manufactured in the USA - Optional Fan
